Bosch

PPQ7A6I40, Gas hob

Sku:

PPQ7A6I40

Category:

Bosch

Tag:

Cooking ,

Gas Hobs

Vendor:

Bosch

Type:

Cooking > Hobs > Gas Hobs

Design
  • Tempered glass surface, Black

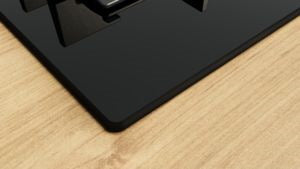

  • frameless design: install the hob either flush or slightly raised on the worktop

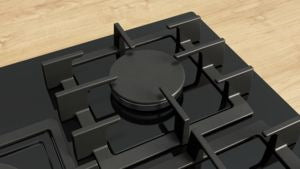

  • Cast iron pan supports with rubber feet
  • full metal
Usage convenience

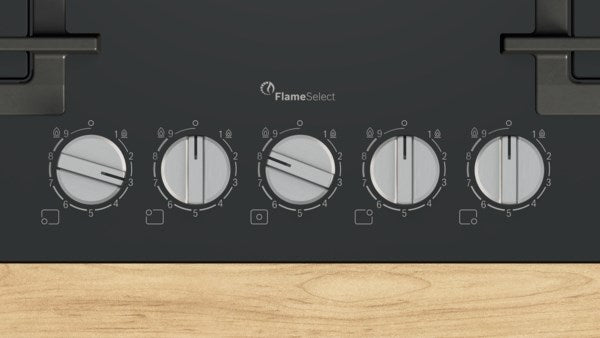

  • FlameSelect: precisely control and adjust the flame in nine defined levels.
  • Design co-ordinated control dials, front: easily access dials in front with strong grip for effortless turning.
  • Ignition via control dials: just push and turn the dials to ignite the flame.

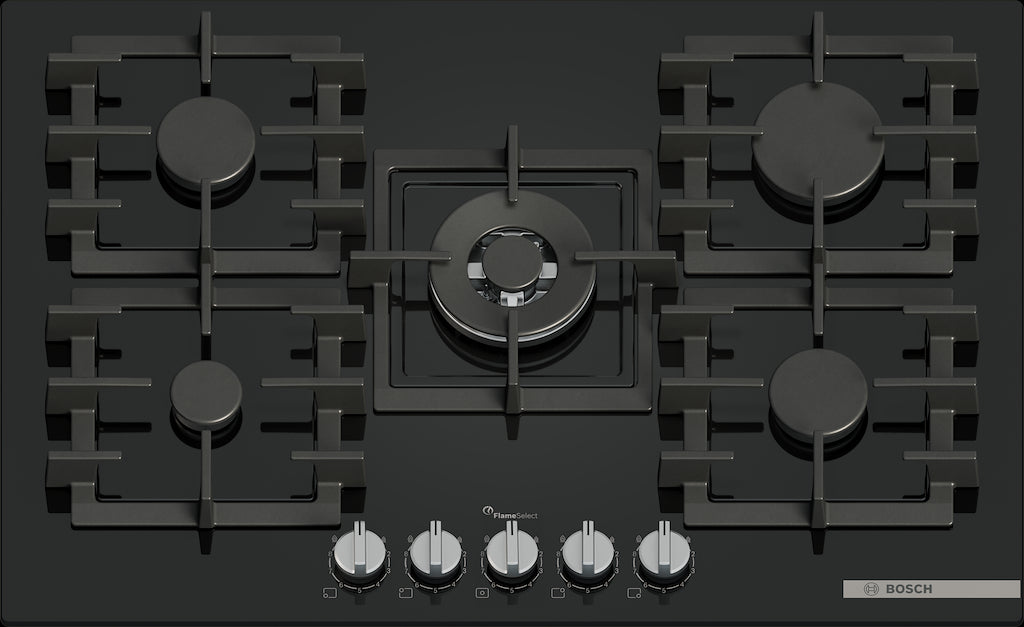

Burners and power
  • 5 gas burners:
  • Left front: economy burner up to 1 kW (depending on gas type)
  • Left rear: Standard burner up to 1.75 KW (depending on gas type)
  • Center front: wok burner up to 4 KW (depending on gas type)
  • Right rear: high-speed burner up to 3 KW (depending on gas type)
  • Right front: standard burner up to 1.75 KW (depending on gas type)
Cleaning
  • Removable control dials for easy cleaning between knobs.
  • Dishwasher suitable pan supports for easy cleaning.
  • Cast iron pan supports with rubber feet: little weight and compact form, yet high stability due to continuous surface.
Safety
  • Flame failure safety device: prevents unwanted gas flow when flame goes out.
Installation (gas types & measurements)
  • Usable for: Nat gas L/LL G25/20mbar(DE)
  • NG H/E 20mbar, E+ 20/25mbar Natural gas H 25 mbar (HU) Natural gas L 25 mbar (NL) Liquid gas G30,31 28-30/37mbar Liquid gas G30 37 mbar (PL) Liquid gas 50 mbar
  • Pre-set for natural gas
  • Nozzle set for LPG jets included. Connection to 28-30/37 mbar bottled gas. Nozzles for all other gas types can be ordered via the customer service. For nozzle change, please contact the customer service.
  • Dimensions of the product (HxWxD mm): 54 x 752 x 520
  • Required niche size for installation (HxWxD mm) : 45 x 560 x (480 - 492)
  • Min. worktop thickness: 30 mm
  • If installed flush, minimum worktop thickness is 30mm.
  • Power cord: 1 m
  • Connected load: 11.5 KW
