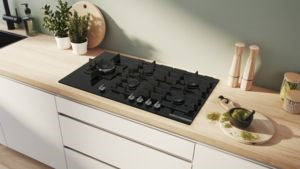

frameless design: install the hob either flush or slightly raised on the worktop

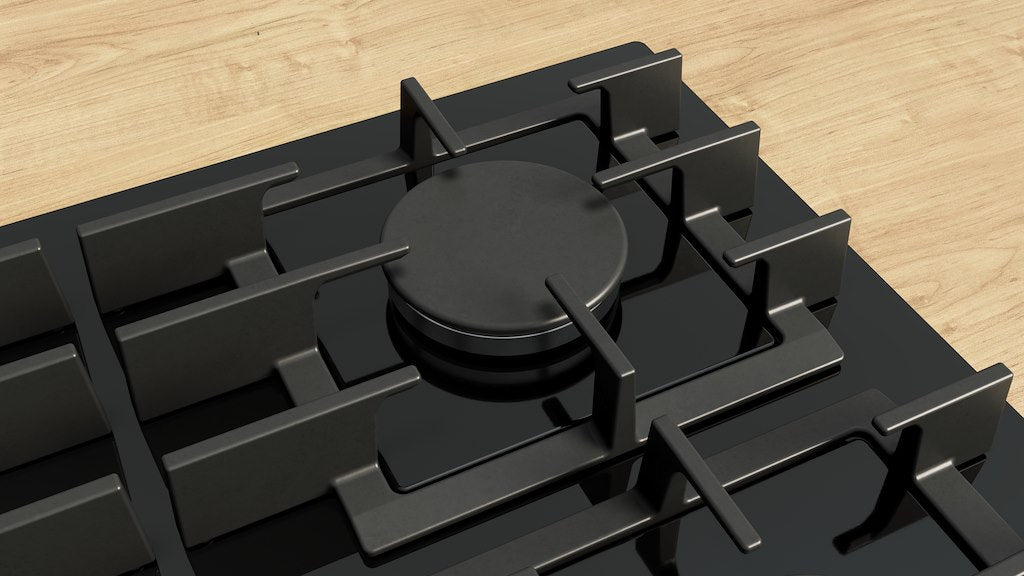

Cast iron pan supports with rubber feet
Usage convenience

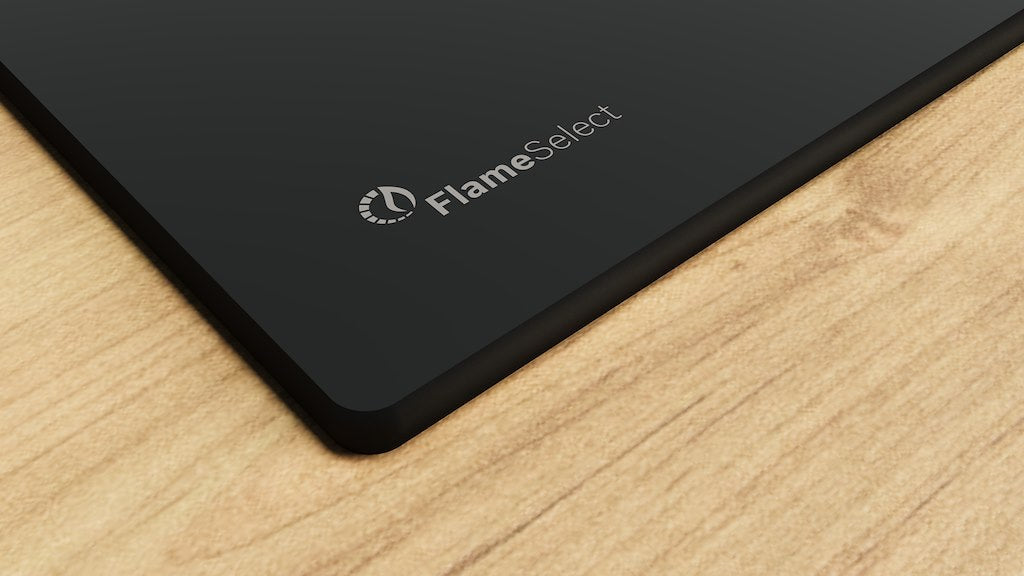

FlameSelect: precisely control and adjust the flame in nine defined levels.

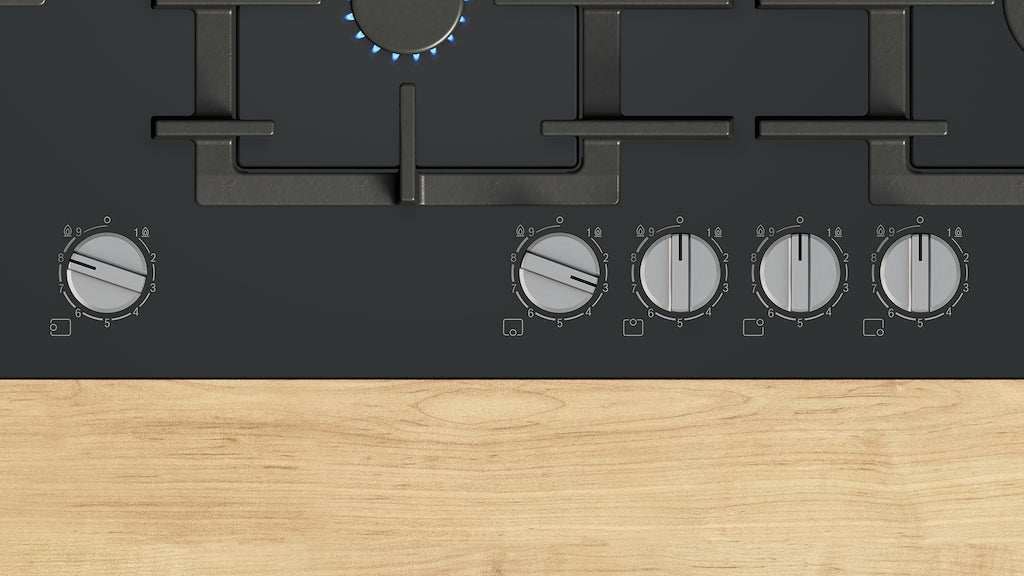

Design co-ordinated control dials, front: easily access dials in front with strong grip for effortless turning.
Ignition via control dials: just push and turn the dials to ignite the flame.
Burners and power
5 gas burners:
Left: wok burner up to 4 KW (depending on gas type)
Center front: economy burner up to 1 KW (depending on gas type)
Center rear: standard burner up to 1.75 KW (depending on gas type)
Right rear: high-speed burner up to 3 KW (depending on gas type)
Right front: standard burner up to 1.75 KW (depending on gas type)
Cleaning
Removable control dials for easy cleaning between knobs.
Dishwasher suitable pan supports for easy cleaning.
Cast iron pan supports with rubber feet: little weight and compact form, yet high stability due to continuous surface.
Safety
Flame failure safety device: prevents unwanted gas flow when flame goes out.
Installation (gas types & measurements)
Usable for: Nat gas L/LL G25/20mbar(DE)
NG H/E 20mbar, E+ 20/25mbar Natural gas H 25 mbar (HU) Natural gas L 25 mbar (NL) Liquid gas G30,31 28-30/37mbar Liquid gas G30 37 mbar (PL) Liquid gas 50 mbar
Pre-set for natural gas
Nozzle set for LPG jets included. Connection to 28-30/37 mbar bottled gas. Nozzles for all other gas types can be ordered via the customer service. For nozzle change, please contact the customer service.
Dimensions of the product (HxWxD mm): 54 x 915 x 520
Required niche size for installation (HxWxD mm) : 45 x 850 x (490 - 500)
Min. worktop thickness: 20 mm
If installed flush, minimum worktop thickness is 30mm.
